DESCRIPTION

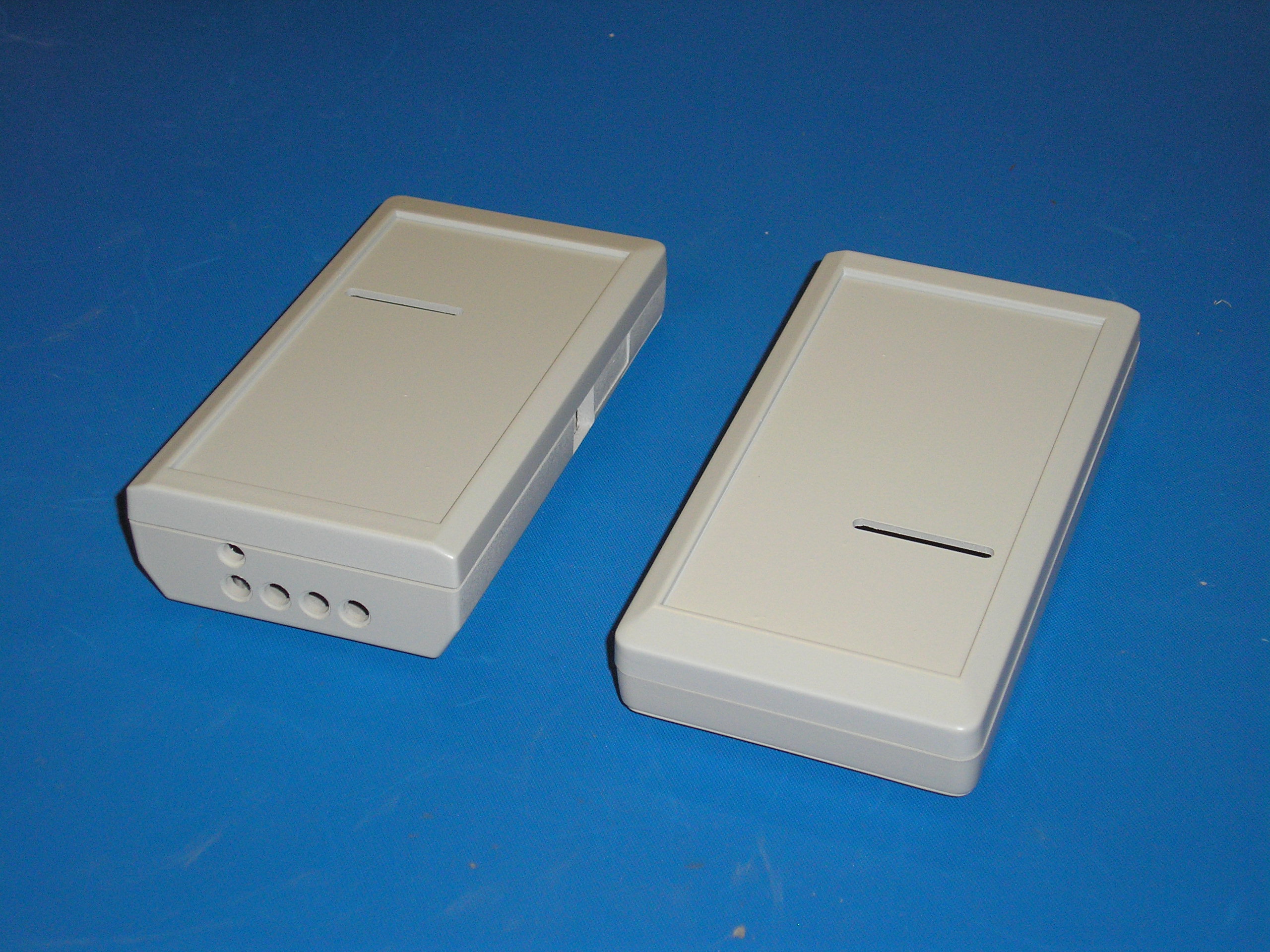

Single component coloured acrylic dissipative coating which provides effective static control on plastic housings used in the Electronic and Computer Industries.
PHYSICAL PROPERTIES
Surface Resistivity at 50 micron (ASTM D257) 107 ohm/sq
Recommended Dry Film Thickness 50 micron
Density 1.1g/cm3
Drying Time – Touch 20 Minutes
Full 12 Hours
Static Decay (IEC TC15) < 2 Seconds
METHOD OF USE
SURFACE PREPARATION
All contaminants must be removed from the surface. Mark areas that do not require coating. A suitable primer may be necessary on certain substrates such as Polyethylene and Polypropylene etc.
MIXING AND APPLICATION
Reduce 1:1 by volume with supplied thinners, conventional spray equipment should be used. A gun pressure of 35 psi is recommended. Two passes are normally required to give the optimum thickness and surface resistivity values.
Brush coating – brush directly from the can.
PRECAUTIONS
HIGHLY FLAMMABLE – Keep away from sources of ignition. No smoking. Keep away from heat, sparks and open flames. Keep all containers closed when not in use.
Use under well ventilated conditions, personal respiratory protection should be worn during spraying conditions. Such devices must be used in accordance with the manufacturers instructions.
Avoid contact with skin, wear protective gloves and clothing. Wash thoroughly with soap and water after use. If accidentally swallowed, seek medical advice.
This data sheet relates to the material as supplied. The information contained herein is given in good faith, but no liability will be accepted by the company in relation to the same. The acquisition of additional information may necessitate revisions to parts or all of this data sheet, and such information will be supplied as it becomes available.
As the company’s products are used for a multiplicity of purposes, and as the company has no control over the method of their application or use, the company excludes all conditions or warranties, express or implied, by statute or otherwise, as to their products and/or their fitness for any particular purposes.
Any technical co-operation between the company and the customer is given for the customer’s assistance only and without liability on the part of the company.
