ECP 573 Clear SD Acrylic Paint

Single component permanently conductive clear acrylic coating which provides effective static elimination for electronics safe handling areas and explosive atmosphere applications. Fully compliant with BS EN 61340-5-1 and ATEX, contains carbon nanotubes and graphene.

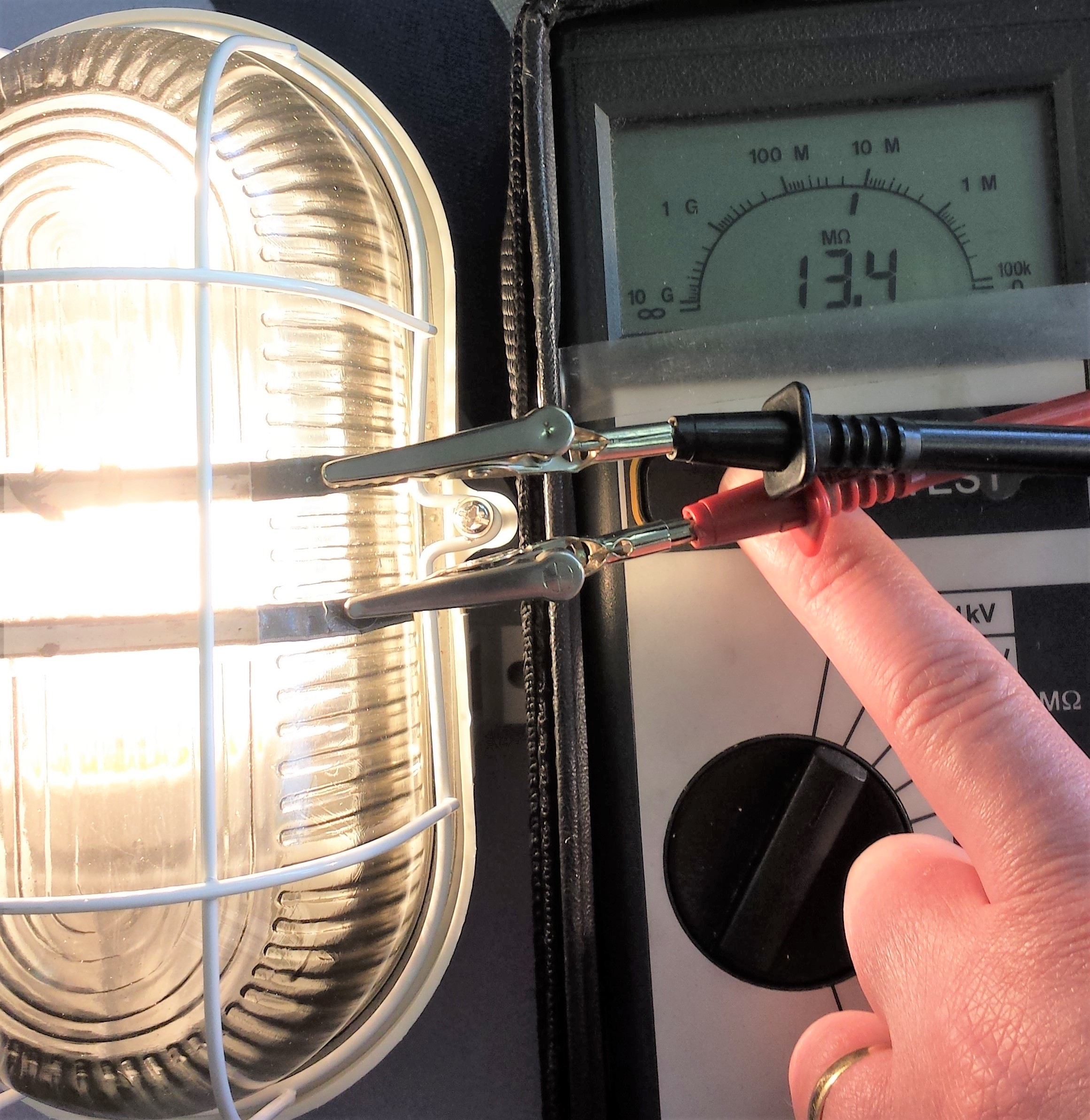

Applications in lighting, windows, clear covers and lids, displays etc.

PHYSICAL PROPERTIES

Surface Resistivity at 50 micron (ASTM D257)      = <10⁷ ohm/sq



Recommended Dry Film Thickness                            20 micron



Density                                                                         1.1g/cm³



Drying Time – Touch                                                    20 Minutes

Full                                                      12 Hours



Static Decay (IEC TC15)                                             < 2 Seconds



Light transparency                                                         85%



Coverage                                                                      6-8 m²/litre
