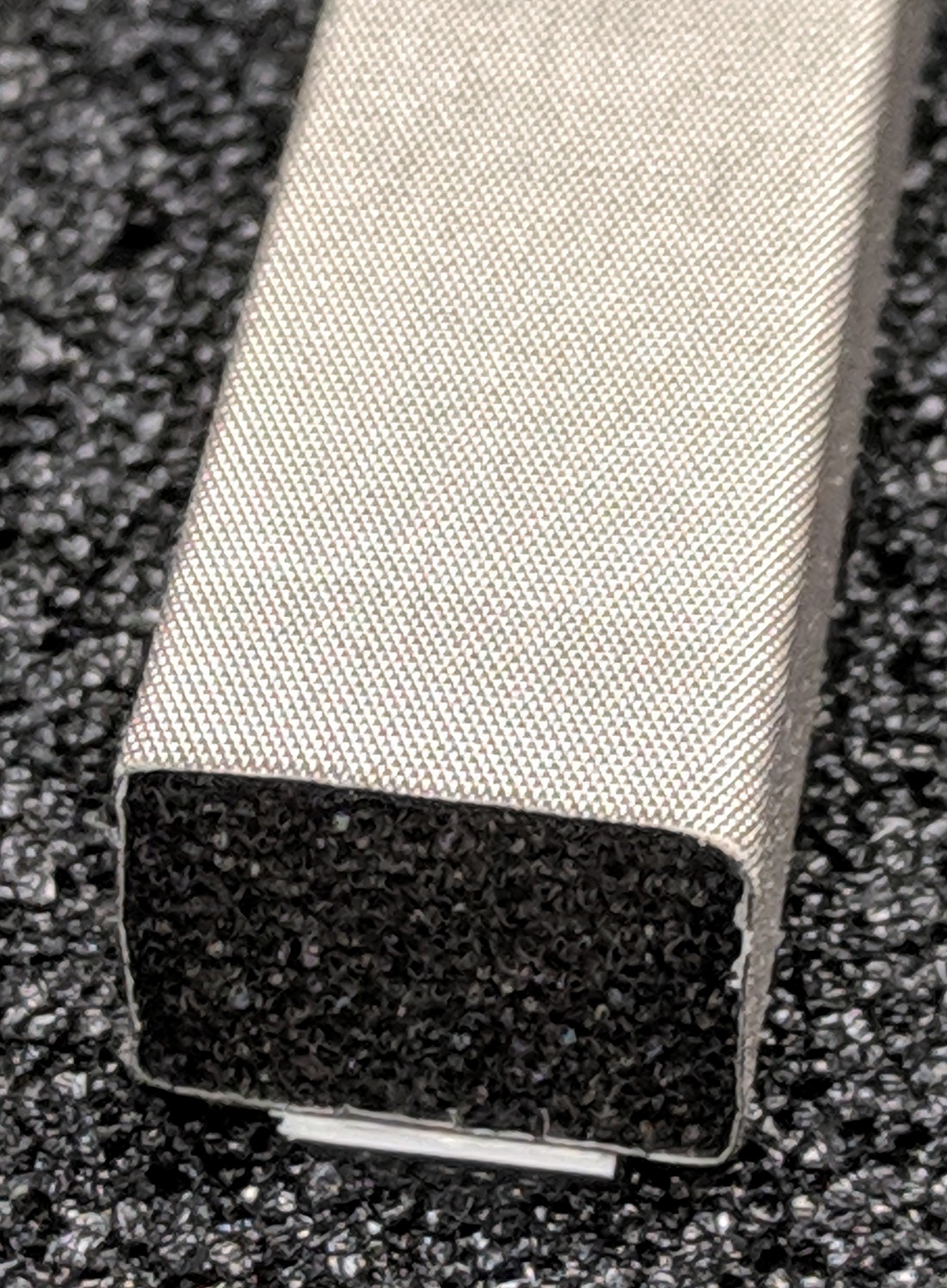

430-0095-0095SFG SOFT FOAM GASKET 9.5mm SQUARE

TBA Protective Solution’s EMI Shielding Soft Foam Gaskets
consist of polyurethane foam
combined with highly conductive
fabrics. TBA PS’s gaskets are
suitable for a variety of applications.
A variety of shapes and thickness are
available from commonly used ones
such as rectangular shapes and D
shape, We are able to provide gaskets
with different shapes and sizes based
upon customers’ requests.
CONDUCTIVE FABRIC (WR-290-CNP-BrF)
Content Specification
Raw Material Polyester 100%
Composition Woven taffeta, Ripstop
Plating Copper + Nickel
Temperature Limit 200 °C
Electric Resistance Less than 0.08 ohms per square inch
Shielding Effectiveness 68dB ~ 88dB from 30 Mhz to 1Ghz
Option UL, Flame class 94VTM-1, VTM-0
Optional Coating Flame Retardant Thermal Adhesive (Hot melt)
POLYURETHANE
Content Specification
Density (Kg/m³) 45+3
Tear Strength (Kg/cm) Min 0.40
Tensile Strength(Kg/cm²) Min 1.50
Elongation (%) Min 120
Compression Set (%) Max 6
Flammability UL94V-0
PRESSURE SENSITIVE ADHESIVE TAPE
Content Specification
Thickness (mm) 0.13
Temperature Range (°C) -40 ~ 204
Colour Clear
Adhesion Strength 80 oz / inch (87N/100mm)
Option Conductive Tape
Shielding Effectiveness
Specification of Raw Materia
