Description

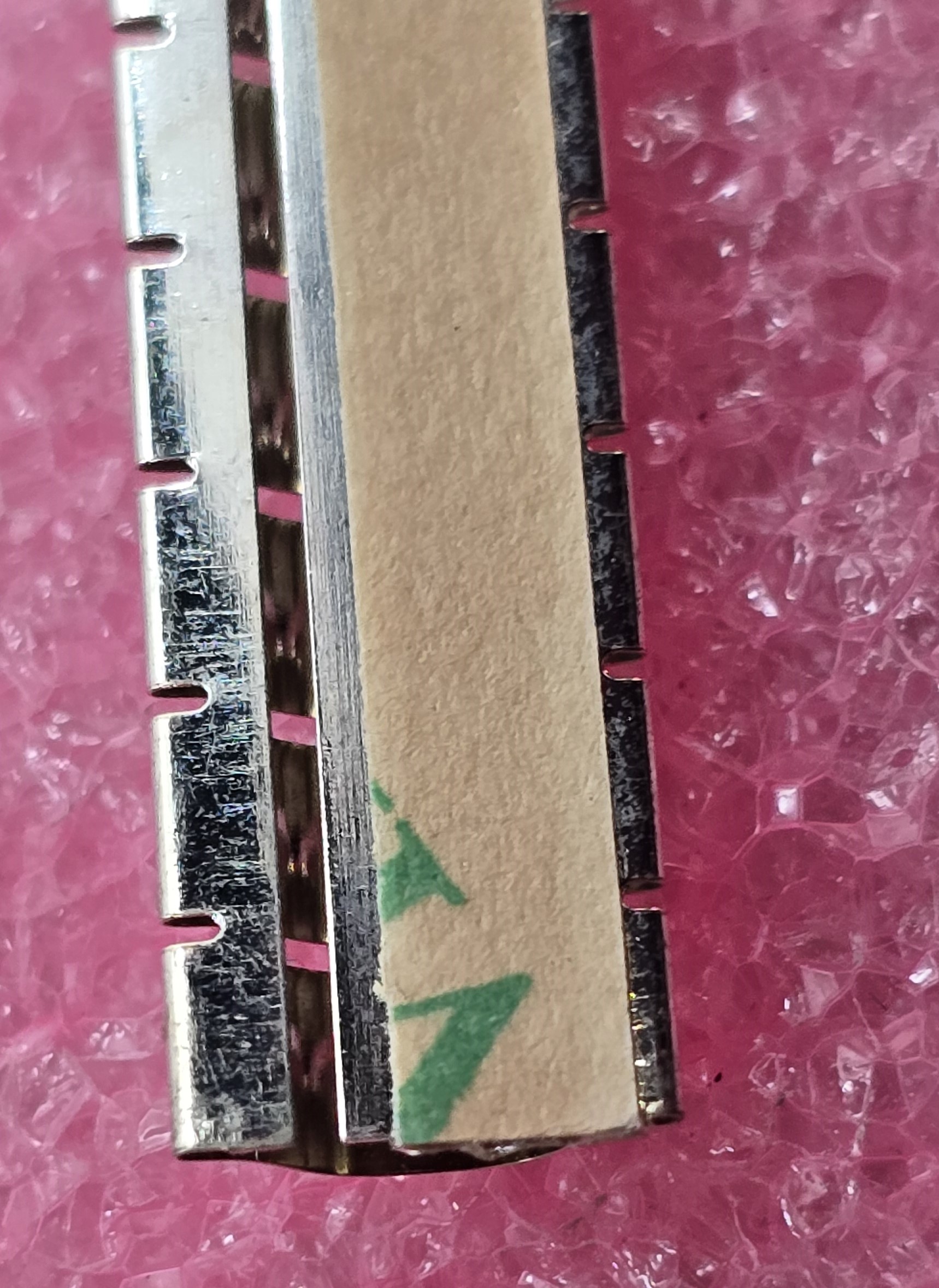

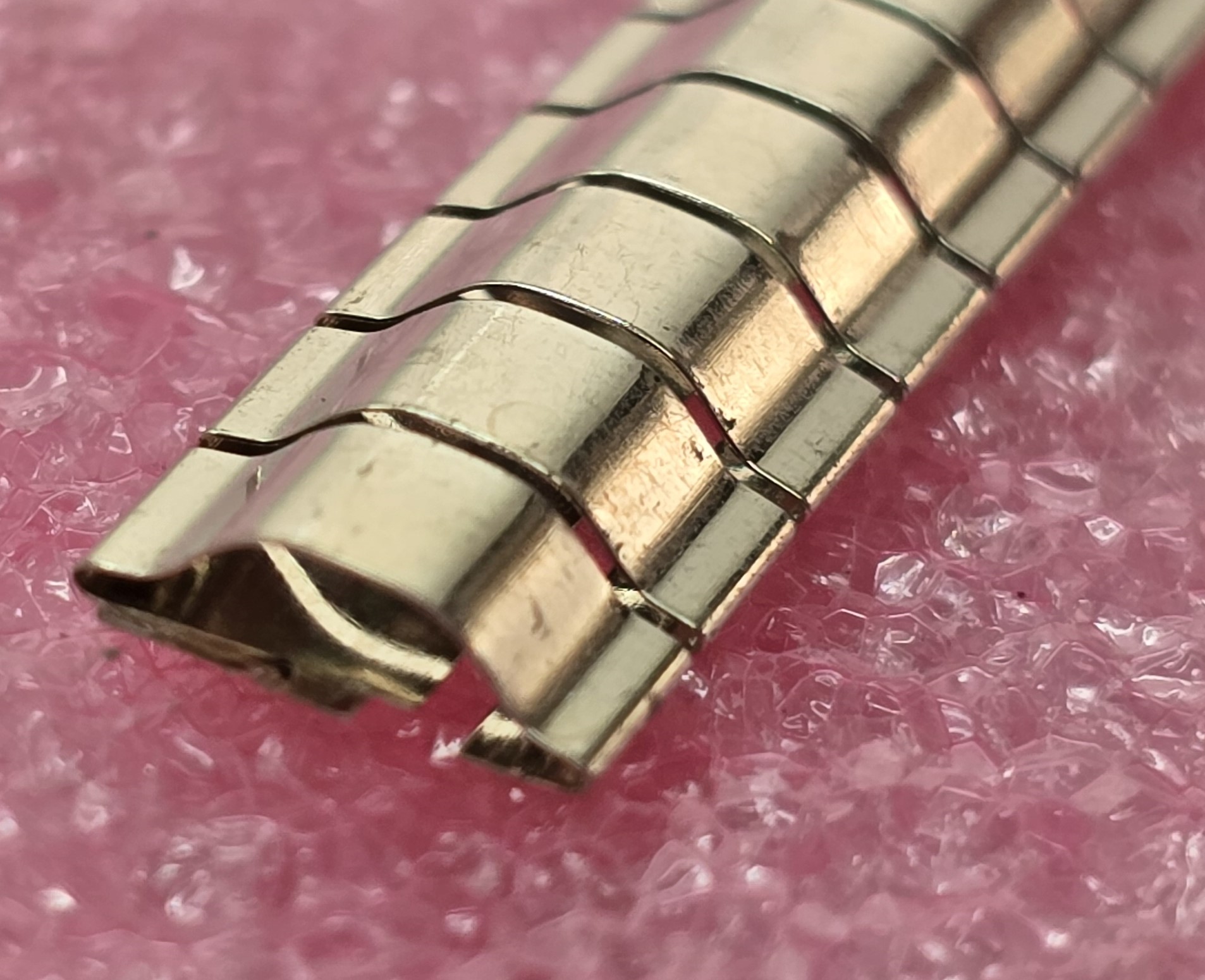

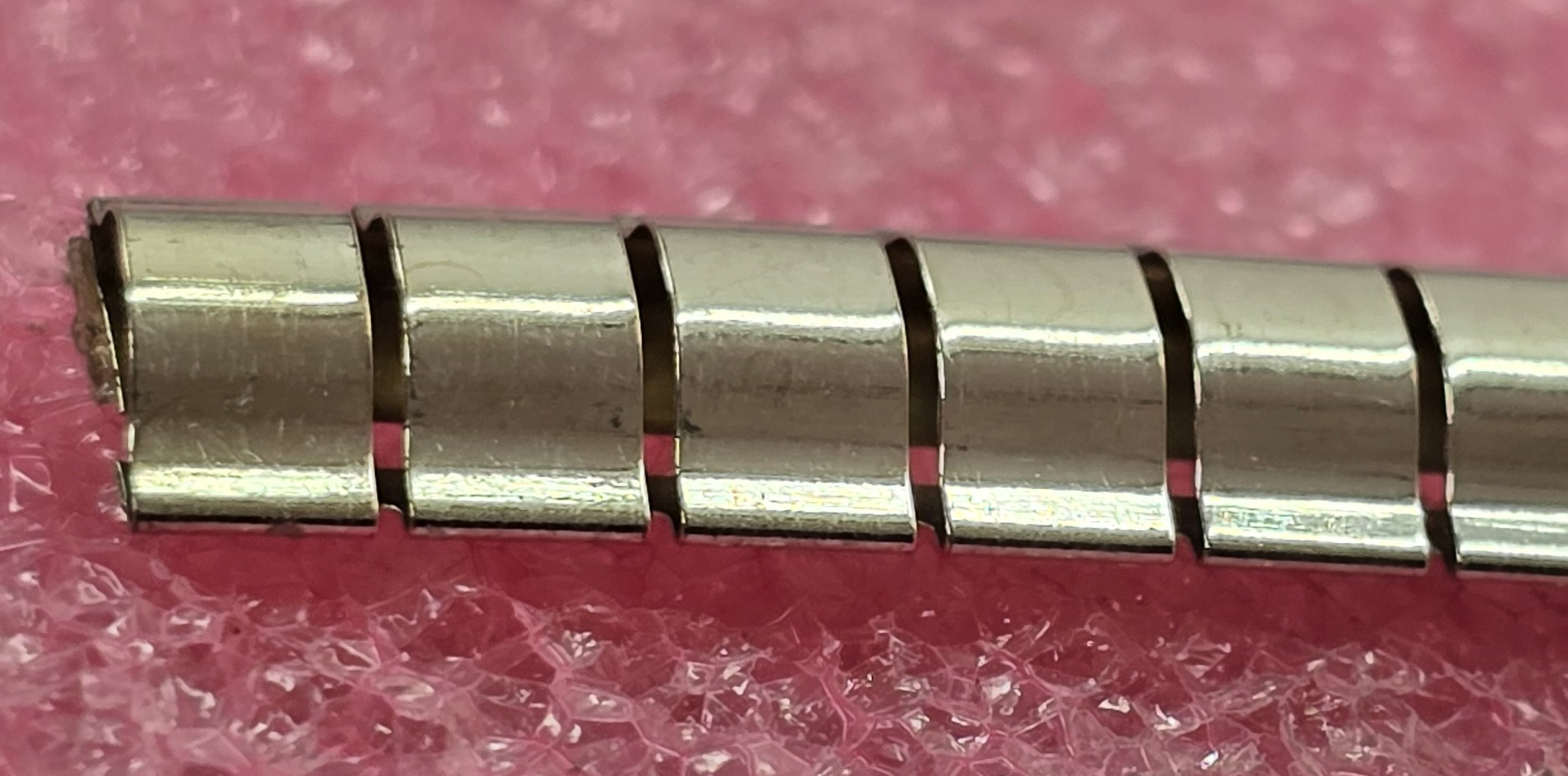

Stick on Beryllium Copper EMI Shielding finger strip gasket.
- Pressure Sensitive Mounting
- 3.96mm pitch
- 3.51mm finger
- 2.54mm height
- 8.13mm width
- 0.09mm thickness
- Up to 406mm length
- 25% Compression – 50% Compression 45kg/m to 113kg/m
TBA Protective Solutions Beryllium Copper (Be/cu) Fingerstrip gaskets provide maximum spring properties for strength and fatigue resistance plus excellent conductivity and come in a variety of finishes and mounting styles.
Be/cu’s (beryllium copper) unique material properties make it ideal for EMI Shielding. Available with numerous plating options, be/cu has a high cycle time and also conforms to large gap variations.
