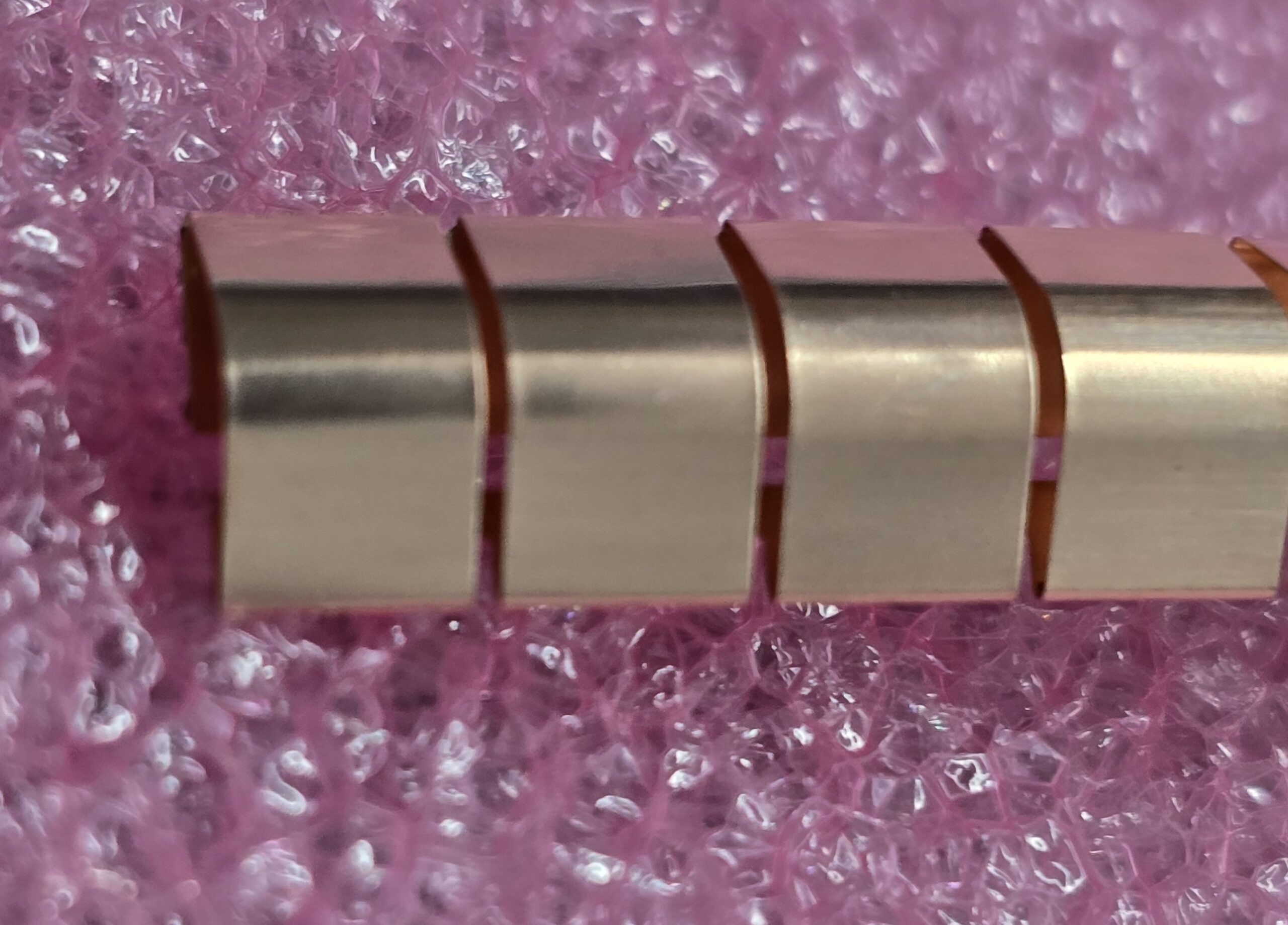

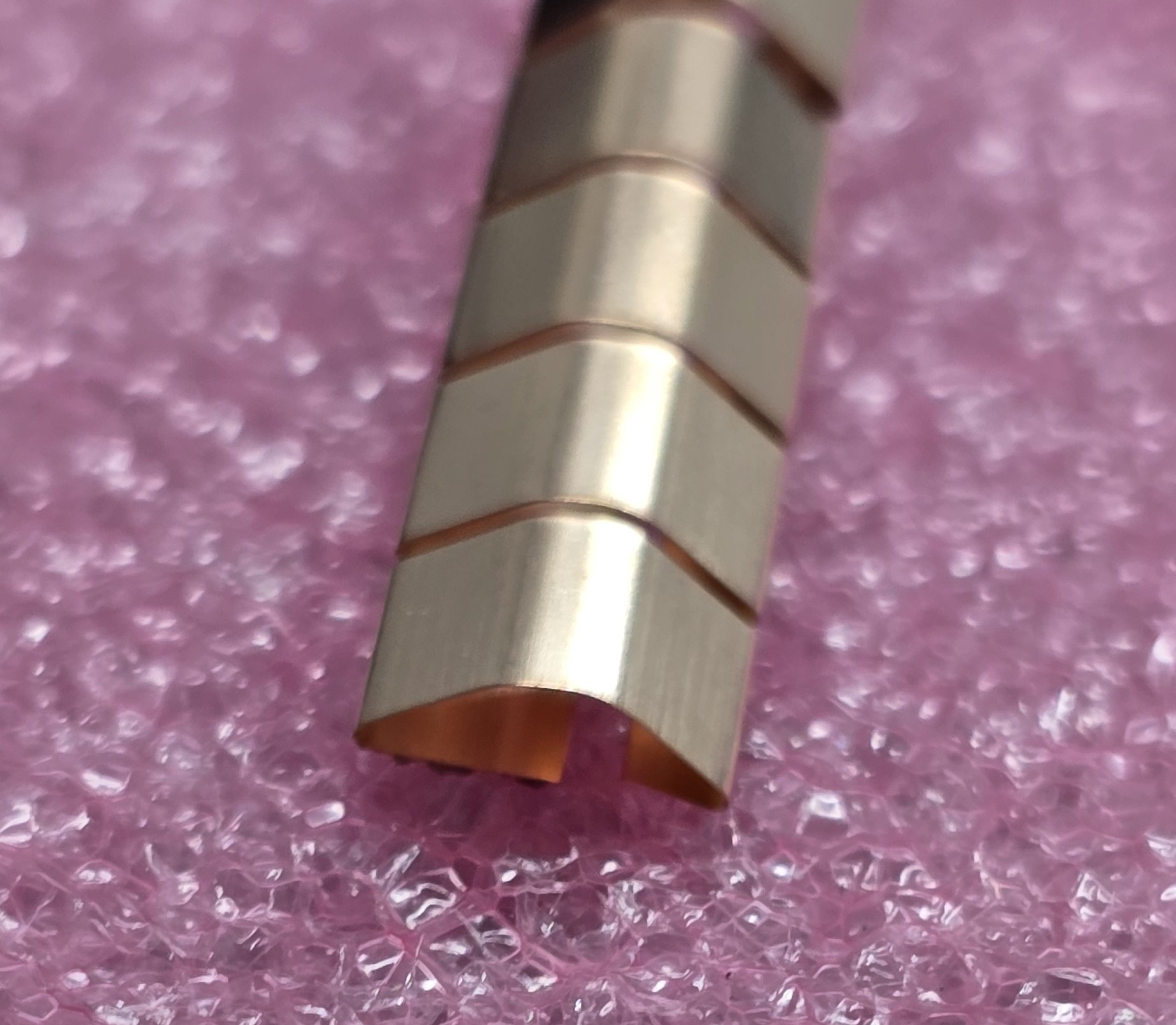

Stick on Beryllium Copper EMI Shielding finger strip gasket.

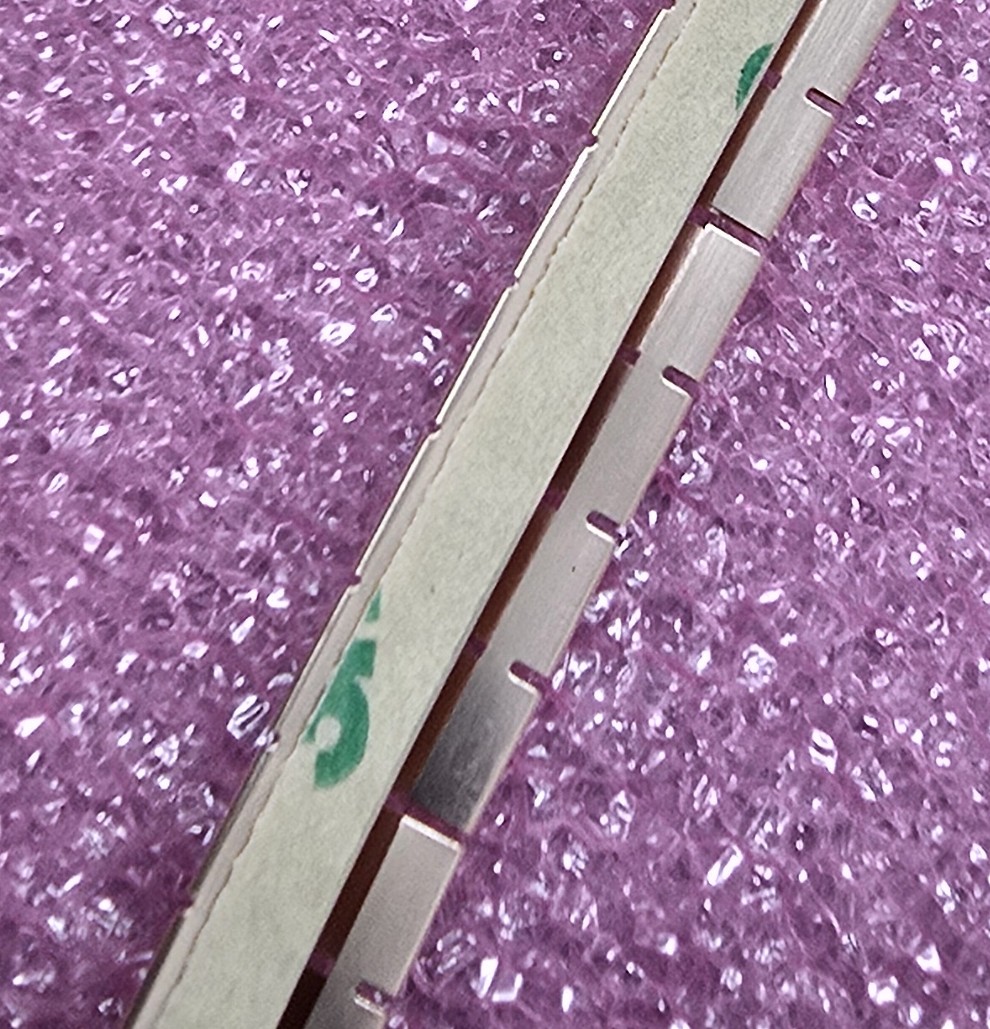

- Pressure Sensitive Mounting

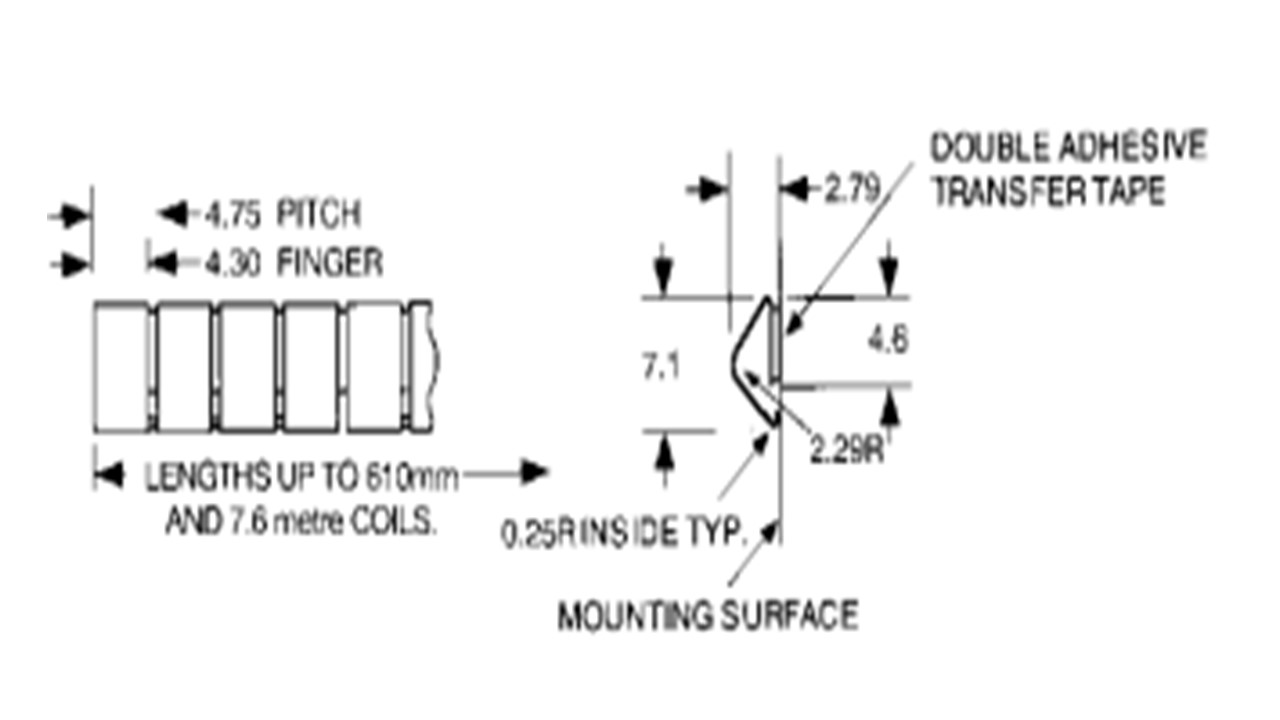

- 4.75mm pitch
- 4.30mm finger
- 2.79mm height
- 7.10mm width
- 4.8mm flange
- 0.05mm thickness
- Up to 406mm length
- 25% Compression – 50% Compression 22kg/m to 48 kg/m
TBA Protective Solutions Beryllium Copper (Be/cu) Fingerstrip gaskets provide maximum spring properties for strength and fatigue resistance plus excellent conductivity and come in a variety of finishes and mounting styles.
Be/cu’s (beryllium copper) unique material properties make it ideal for EMI Shielding. Available with numerous plating options, be/cu has a high cycle time and also conforms to large gap variations.
