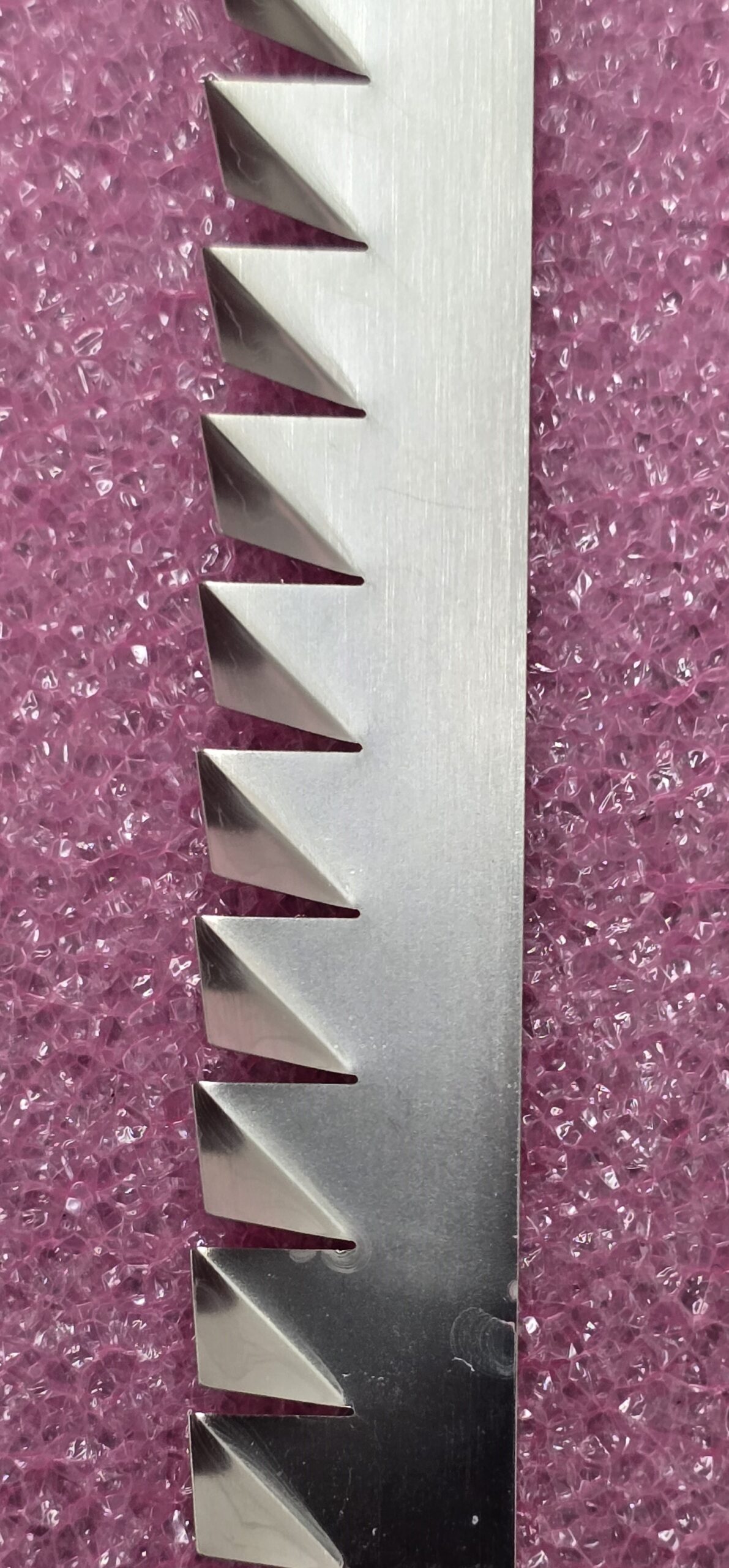

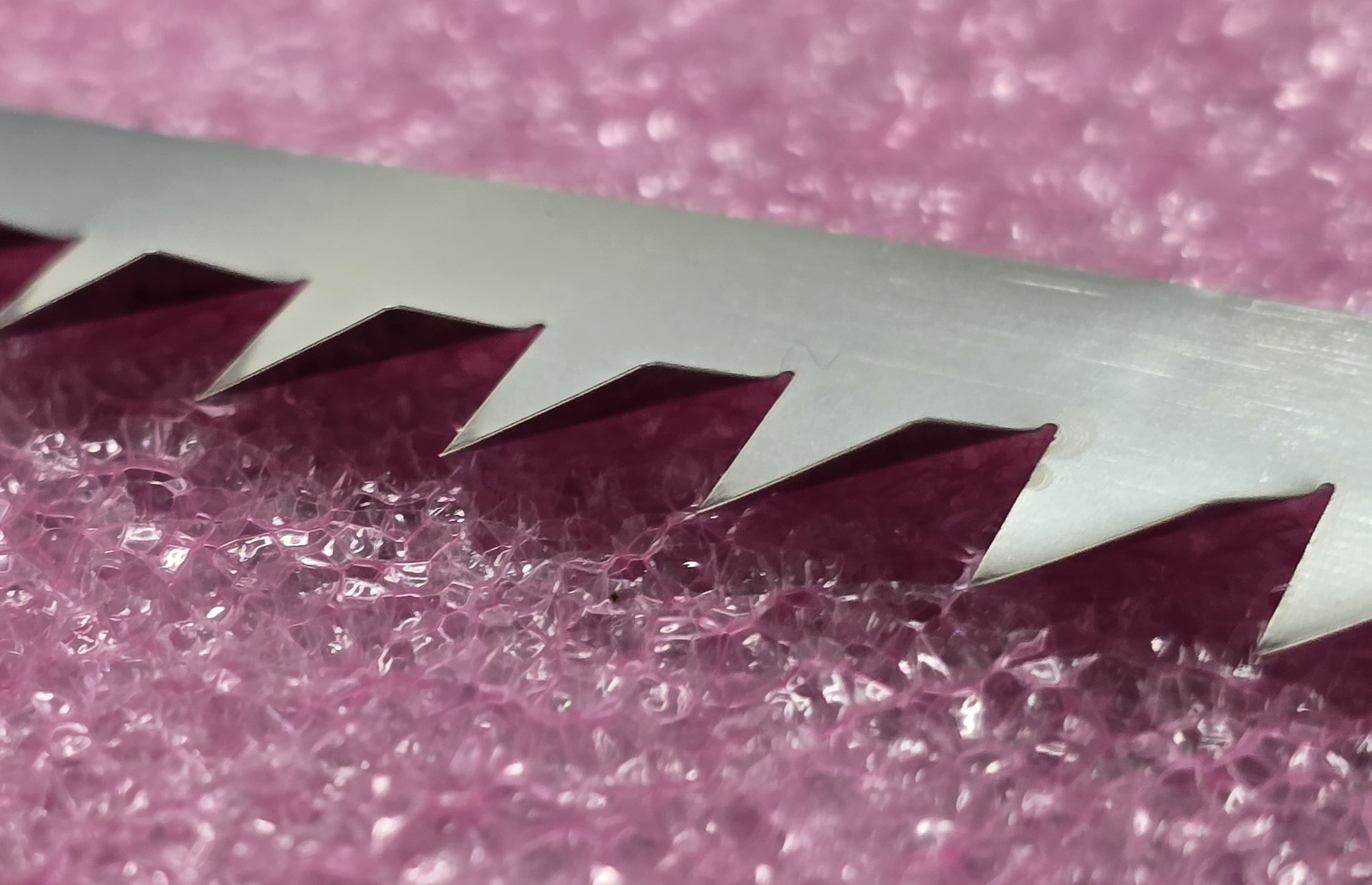

Stick on Beryllium Copper Twisted EMI Shielding finger strip gasket.
- Pressure Sensitive Mounting, Twisted Contact
- 6.35mm pitch
- 5.97mm finger
- 12.70mm height
- 3.05mm width
- 6.35mm Flange
- 0.08mm thickness
- 7.6mtr Roll length
- 25% Compression – 50% Compression 7kg/m to 16kg/m
TBA Protective Solutions Beryllium Copper (Be/cu) Fingerstrip gaskets provide maximum spring properties for strength and fatigue resistance plus excellent conductivity and come in a variety of finishes and mounting styles.
Be/cu’s (beryllium copper) unique material properties make it ideal for EMI Shielding. Available with numerous plating options, be/cu has a high cycle time and also conforms to large gap variations.
