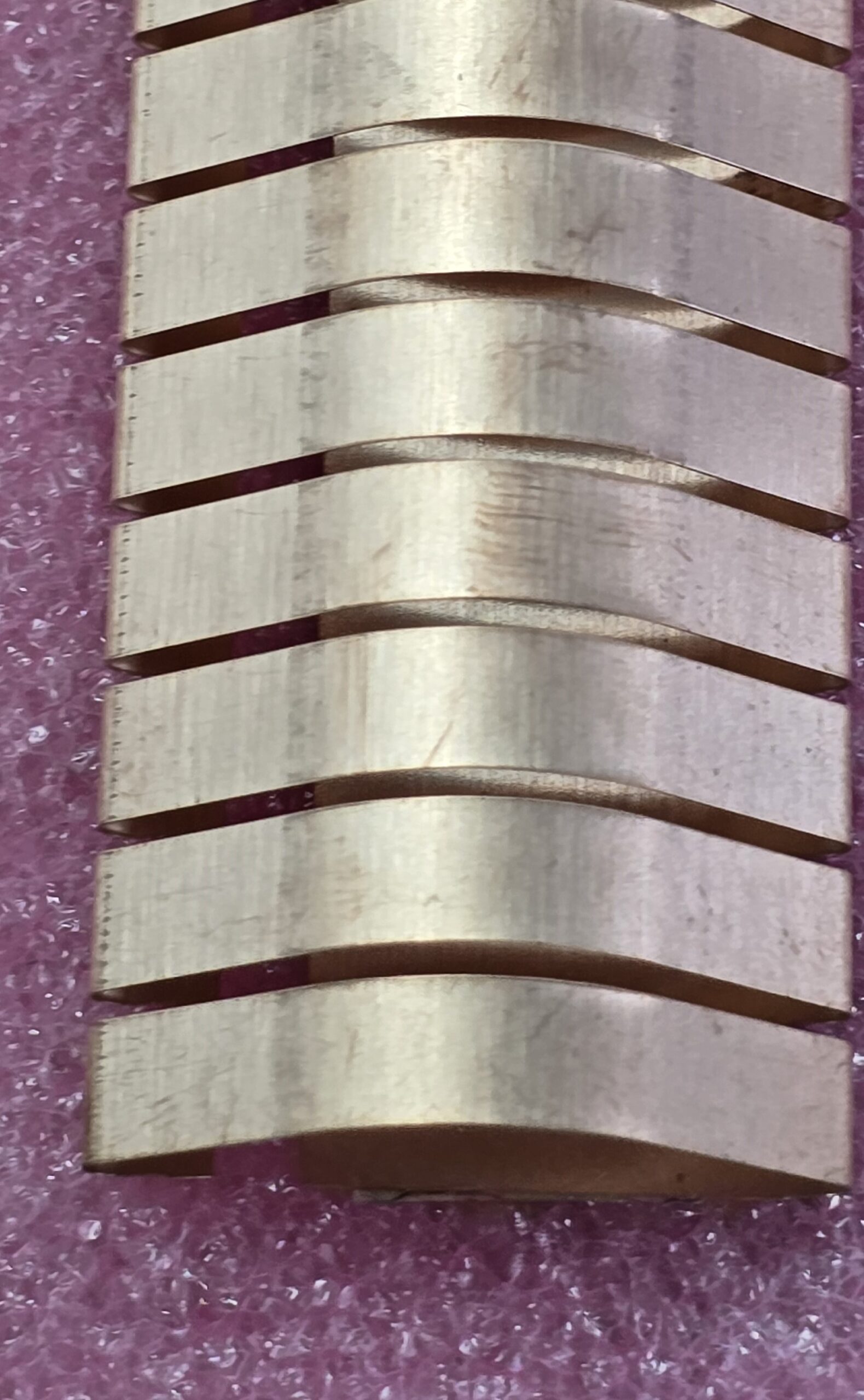

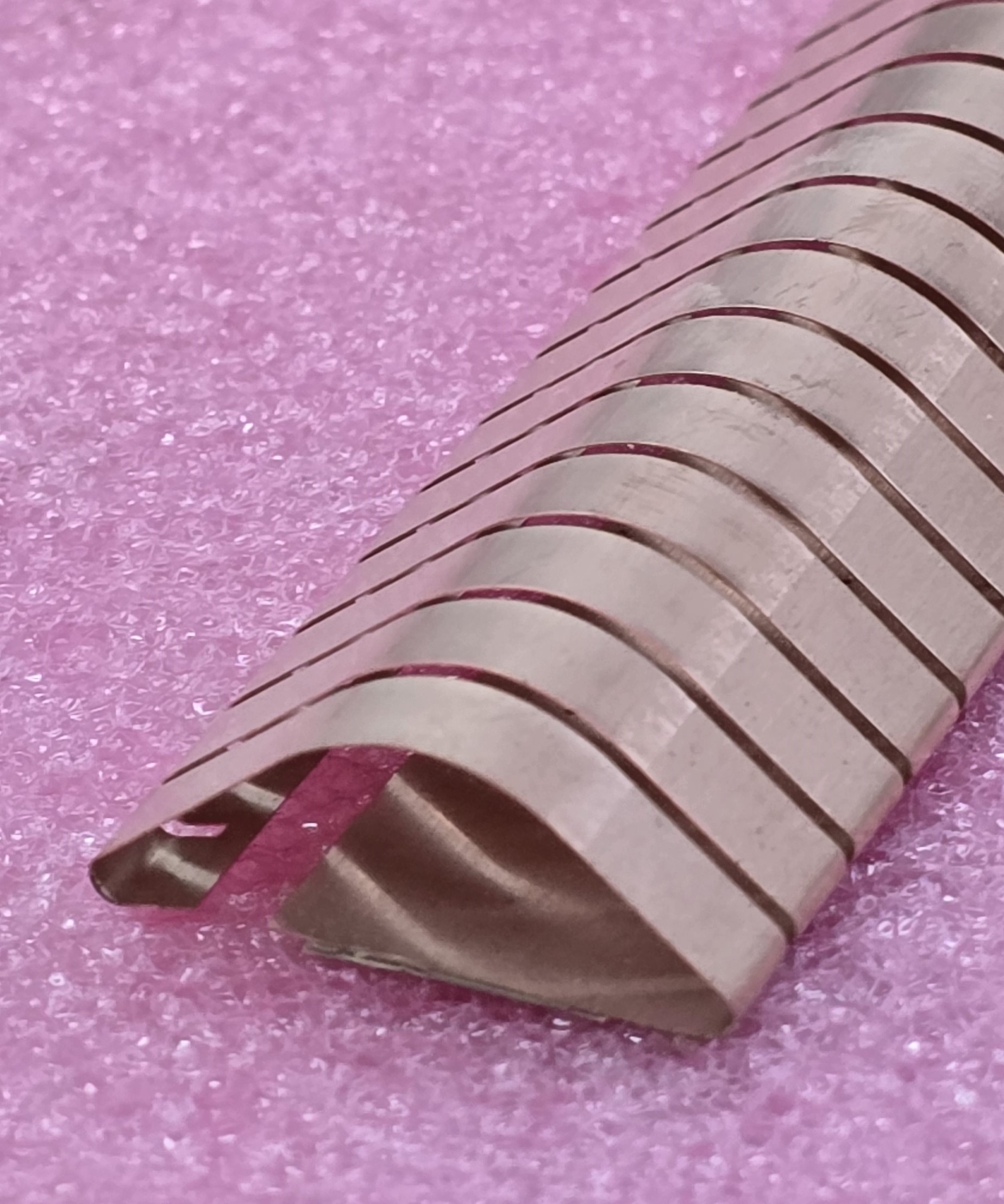

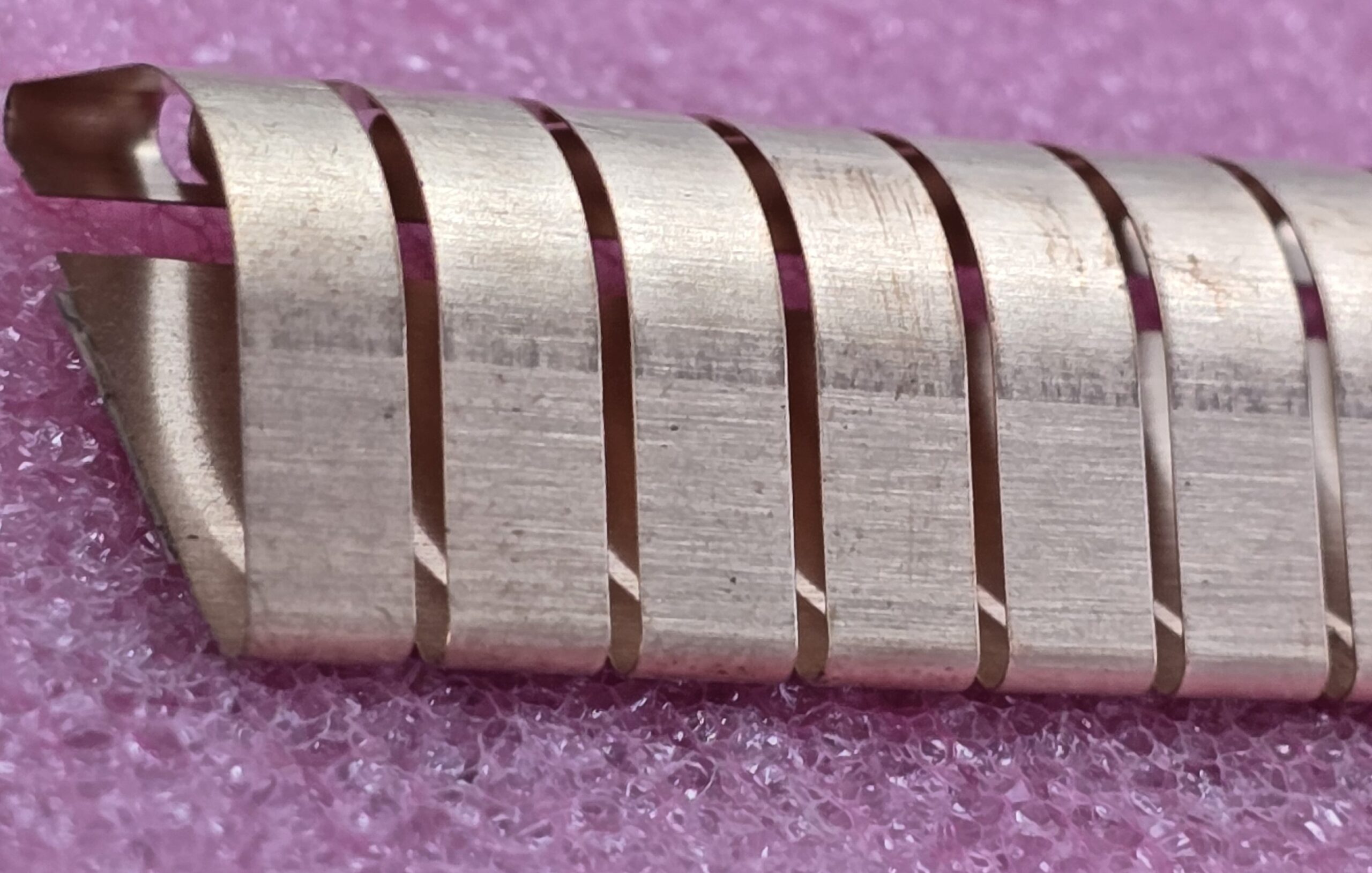

Stick on Beryllium Copper EMI Shielding finger strip gasket.

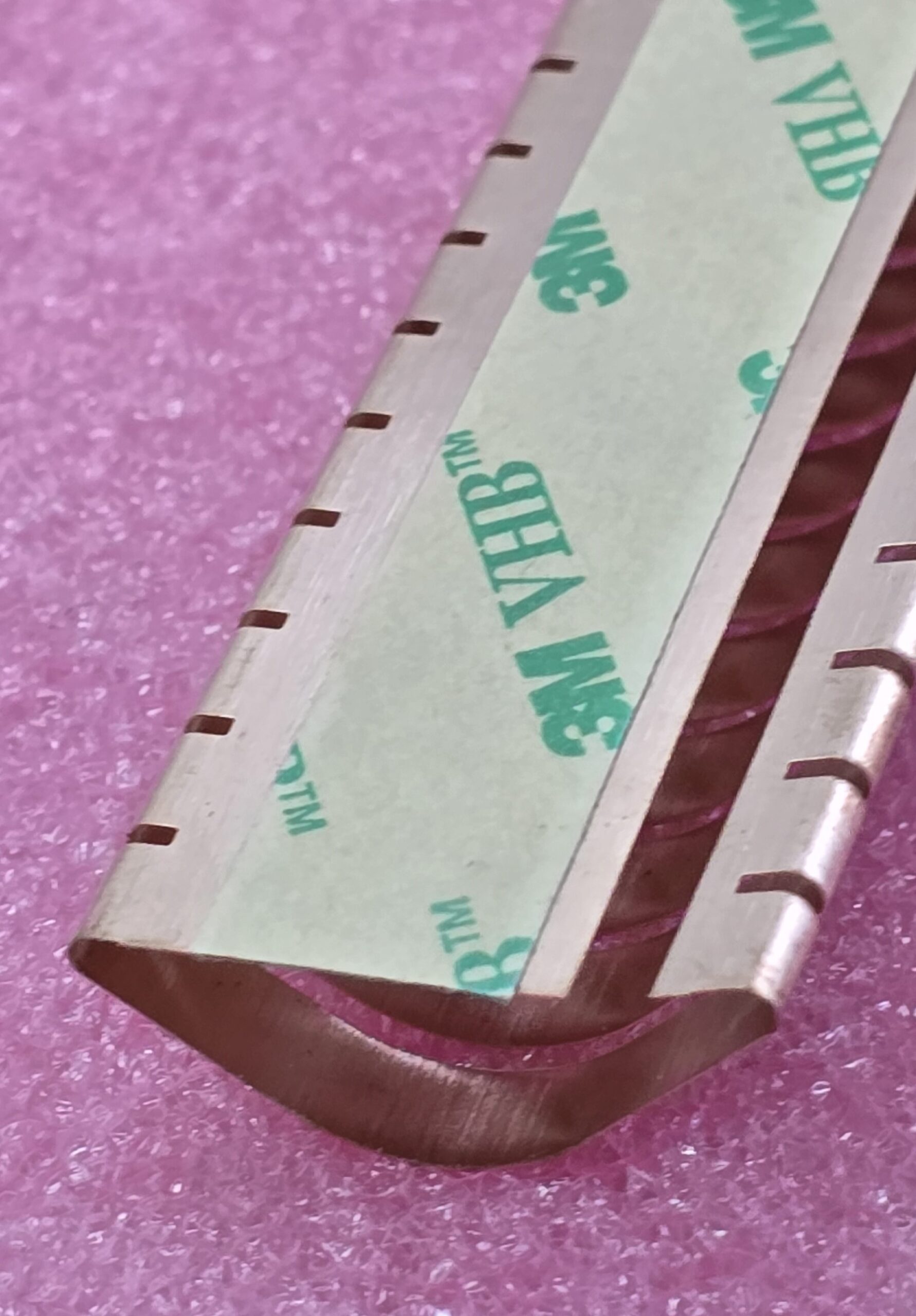

- Pressure Sensitive Mounting
- 6.35mm pitch
- 5.33mm finger
- 10.2mm height
- 27.9mm width
- 19.8mm flange
- 0.13mm thickness
- Up to 457mm length
- 25% Compression – 50% Compression 18kg/m to 36 kg/m
TBA Protective Solutions Beryllium Copper (Be/cu) Fingerstrip gaskets provide maximum spring properties for strength and fatigue resistance plus excellent conductivity and come in a variety of finishes and mounting styles.
Be/cu’s (beryllium copper) unique material properties make it ideal for EMI Shielding. Available with numerous plating options, be/cu has a high cycle time and also conforms to large gap variations.
