Description

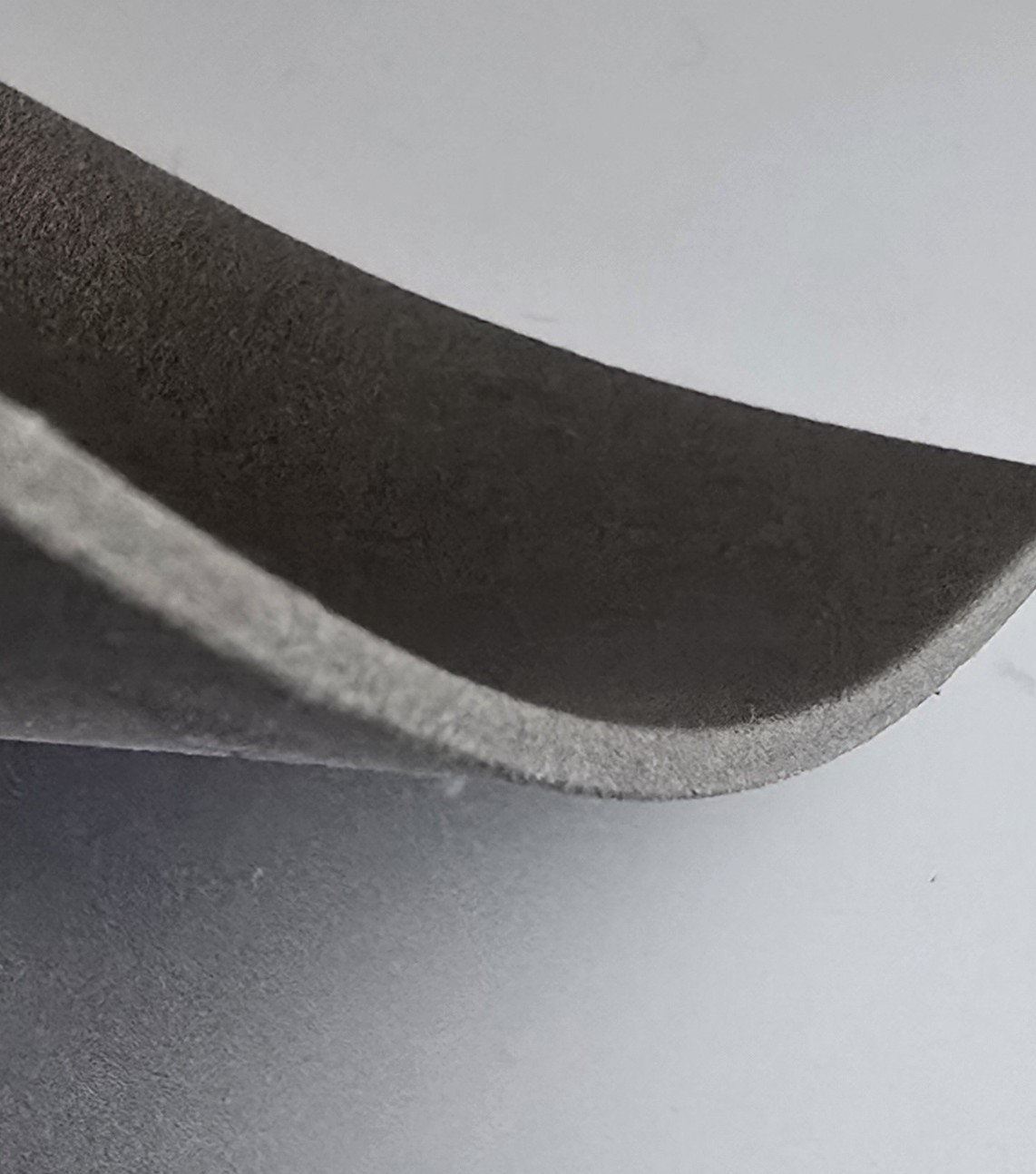

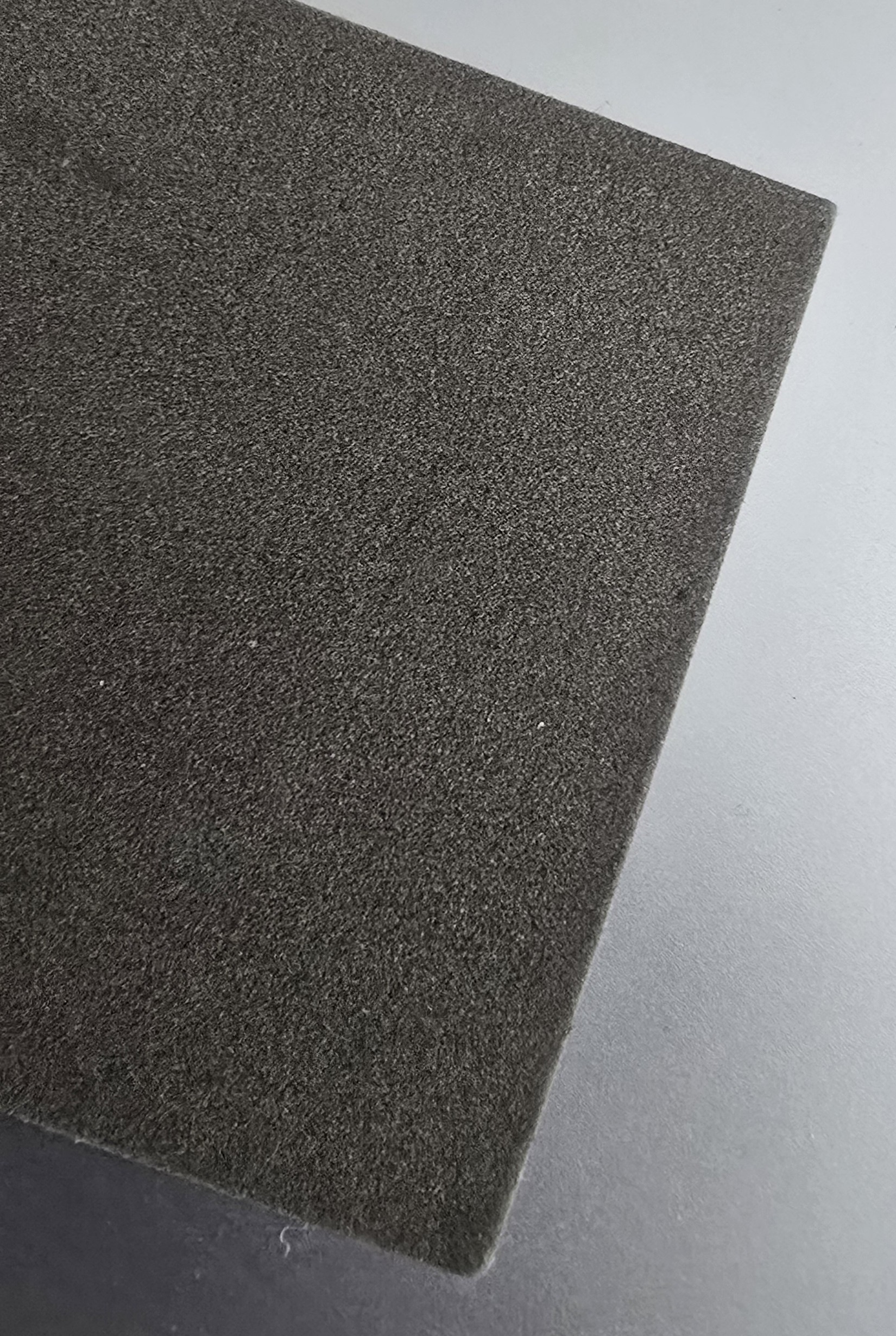

Conductive Nickel Graphite silicone rubber sheets 300x300mm at 1,2+3mm .
The formulations are chosen to provide good galvanic compatibility within the joint and optimum shielding performance.
MATERIAL SPECIFICATIONS
Physical and electrical properties
COMPOUND GRADE
| PROPERTY | ECP 871 | ||||||
| Silicone + | Ni / graphite | ||||||
| Colour | Grey | ||||||
| Specific Gravity (g/cc)
ASTM D792 |
2.01 | ||||||
| Tensile Strength Mpa
(min) ASTM D412
|
|
1.25 | |||||
| Tear Strength
KN/m (min)
|
|
7 | |||||
| Elongation
% (min) ASTM D412
|
|
100 |
|||||
| Compression
set % (max) 22h – 100 °C ASTM D395 |
|
30 |
|||||
|
Temperature Range (°C) ASTM D1329
|
|
-55 to +160 |
|||||
| Volume
Resistivity Ohm.cm (max) |
|
0.05 |
|||||
| Shielding Effectiveness dB (min) 200Khz
100MHz 50Mhz 2GHz 10GHz MIL G 83528 MIL285 |
|
70 95 90 90 90 |
|||||
| EMP Surviv- ability KA/ Linear 1 Inch Perimeter (min) |
|
0.9 |
