FortaFire FBI 120/90 Textile Light Weight Flexible Fire Barrier

FortaFire FBI 120:90 is a two-layer, flexible fire barrier system, with combined fire and

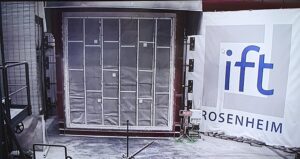

thermal properties, Certified to BS EN 1364-1 at UL. Providing fire compartmentation in
roof voids and concealed spaces as determined by the UK Building Regulations, Approved
Document B for Fire Safety.
FIRE SPECIFICATION: BS EN 1364-1 120 minutes integrity : 90 minutes insulation
UL263 120 minutes integrity : 58 minutes insulation
Certification Body: UL (Underwriters Laboratories)
PROPERTIES: Description: Supplied as a 2 layer system for easy installation.

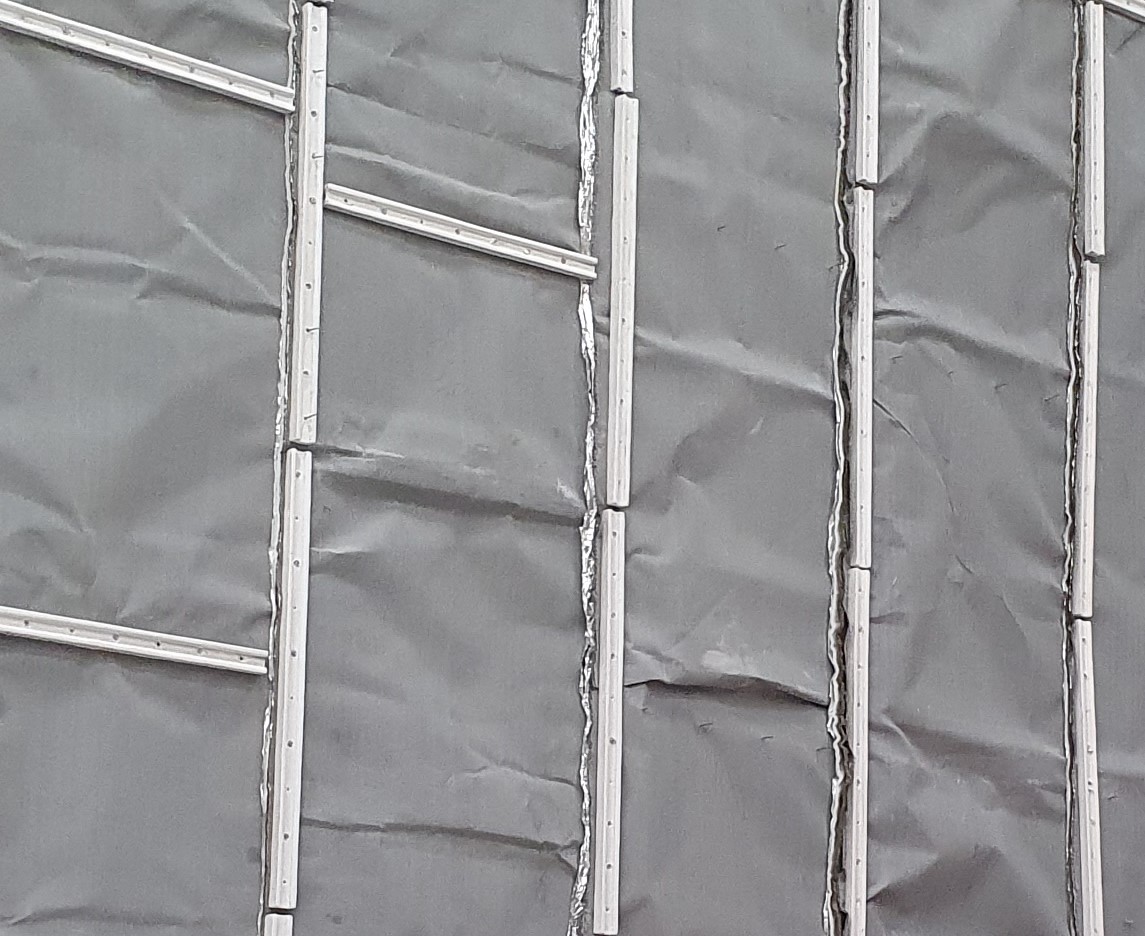

System product including profiles for installing.
Flexible, robust, non-toxic and non-corrosive, easily fit
into tight spaces, no cumbersome weights, with many
additional properties.
Colour: Buff
Product: Coated outer layer, with a combination of non-woven
inner layers and aluminium foil
Nominal Thickness: 10mm per layer
Nominal Weight: 2.7 kg m2 per layer
Supplied: 1 metre wide x 5 metre length (5m2 per pack)
Folded in layers, wrapped in individual polythene bags
ADDITIONAL: EMI Shielding: 50db reflectometer test
ASTM D257 Surface resistance <10⁹Ω
Suitable for use in ATEX environments (Explosive)
Sound: 20db as a stand alone barrier
50db when installed in conjunction with a mineral fibre
type ceiling
R-Value 5-7
All figures quoted are nominal and are believed to be correct at the time of printing. It
