EMI Shielding Gasket 8mm wide x 6mm high. 2m long
CONDUCTIVE FABRIC (WR-290-CNP-BrF)
Content Specification
Raw Material Polyester 100%
Composition Woven taffeta, Ripstop
Plating Copper + Nickel
Temperature Limit 200 °C
Electric Resistance Less than 0.08 ohms per square inch
Shielding Effectiveness 68dB ~ 88dB from 30 Mhz to 1Ghz
Option UL, Flame class 94VTM-1, VTM-0
Optional Coating Flame Retardant Thermal Adhesive (Hot melt)
POLYURETHANE
Content Specification
Density (Kg/m³) 45+3
Tear Strength (Kg/cm) Min 0.40
Tensile Strength(Kg/cm²) Min 1.50
Elongation (%) Min 120
Compression Set (%) Max 6

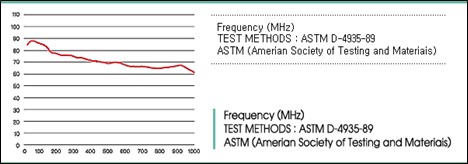

EMI Shielding Performance
